Sera™ Cart Assembly

15 February 2022

10 mins

Reading

This quick guide provides instructions about how to place and attach the Sera™ and accessories on the cart. Follow the cart manufacturer’s instructions to assemble the cart prior to installing the Sera™ and accessories.

Installing the cradle

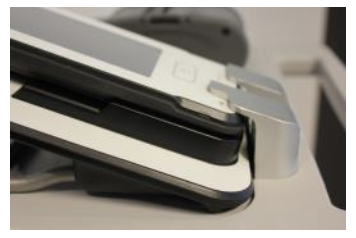

Set the cradle on the cart with the front under the fall prevention plate.

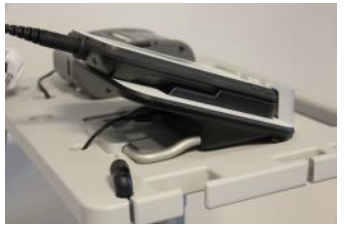

Pass the cradle power supply cable through the pass-through hole and connect it to the port on the back of the cradle.

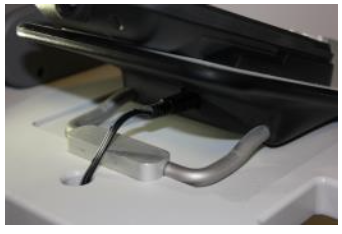

Attach the stabilizer plate over the cradle’s metal bar and fasten with screws.
Plug the power supply into a power strip1 securing the cables with the post cable clips and tie wraps to create a neat appearance and prevent rolling over the cords during transport.

Installing the cables

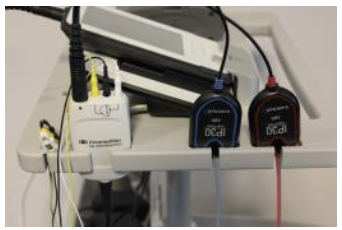

For storage/transport, place the preamplifier, electrode cables and transducers as shown.
For storage/transport, place the probe as shown.

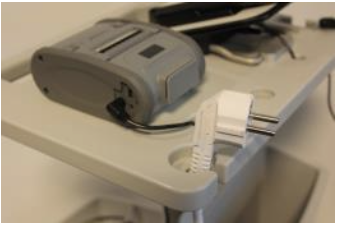

For storage/transport, set the plug of power strip into the edge pocket as shown securing any hanging cables in attached bin to prevent rolling over the cord.

Installing the printer

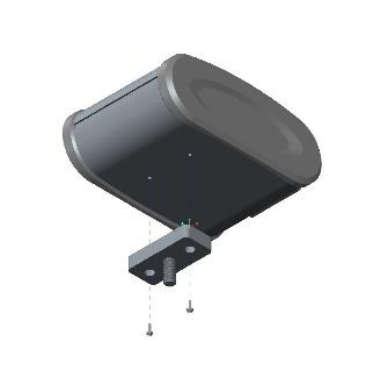

Attach custom plate with the pictured 5/16-18 screws to the printer

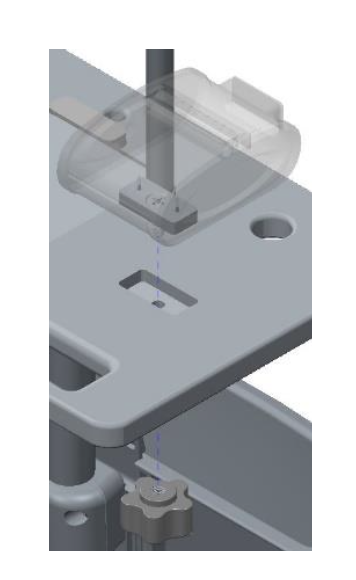

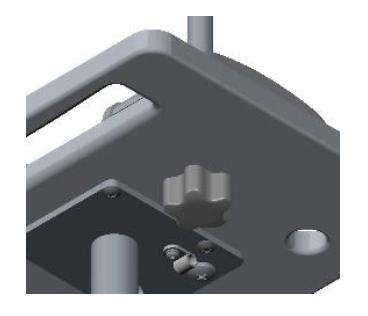

Insert the printer with the custom plate attached into the recess and fasten with the knob.
Pass the printer power supply cable through the pass-through hole behind the printer and connect it to the charger port on the right side of the printer.
Plug the power supply into the power strip securing the cables with the post cable clips and tie wraps to create a neat appearance and prevent rolling over the cords during transport.
